Understand Catalog YAML

For IDP 2.0 Customers

If you're using Harness IDP 2.0, please ensure you have reviewed the IDP 2.0 Overview guide and are familiar with the key steps for upgrading to IDP 2.0. To enable IDP 2.0, you must raise a support ticket to activate the IDP_2_0 feature flag for your account.

Harness IDP 2.0 marks a significant evolution of the Internal Developer Portal, introducing a Harness-native data model tailored for enterprise-scale environments and strong access control. As we transition to this new model, legacy Backstage YAML will no longer be supported. Going forward, only the Harness-native data model schema will be used and referenced. This guide walks you through the new Harness-native YAML schema and outlines the key changes from the previous schema.

What's new in IDP 2.0?​

IDP 2.0 implements a Harness-native entity schema featuring targeted adjustments to previous Backstage-style YAML configurations. These changes primarily introduce scope concepts (project, organization, or account) while enhancing readability based on user feedback.

JSON Schemas for all Catalog entities are available through our API.

⨁ New fields​

  • orgIdentifier (optional)
  • projectIdentifier (optional)

These fields define the entity's scope. For project-scoped entities, both fields will be present. For organization-scoped entities, only orgIdentifier will appear. Account-level entities will have the scope automatically assigned to the account.

♻️ Updated fields​

  • metadata.name becomes identifier
    • This aligns with Harness Entity YAML definitions and enhances UX consistency. Moved to root level due to its importance to entity definition.
  • metadata.title becomes name
    • Aligned with Harness Entity YAML definitions and moved to root level to reflect its critical importance.
  • spec.type becomes type
    • Relocated to root level as it is fundamental to entity definition. The kind and type fields define entity behavior and should appear together.
  • spec.owner becomes owner
    • Moved to root level to emphasize its significance. IDP Catalog addresses ownership challenges, warranting prominent placement of this field.

⊖ Removed fields​

  • metadata.namespace
    • Previously used in Backstage for scoping (typically set as default). With the introduction of Harness Platform Hierarchy, namespace becomes redundant. Scope is now determined using projectIdentifier and orgIdentifier.
  • spec.system and spec.domain
    • These fields previously helped organize components within systems. Since entities will now exist within Harness projects and organizations, these structures will replace System and Domain functionality.

Unchanged fields​

  • metadata continues to be flexible. You can define your own properties within metadata.
  • annotations, description, tags, links, labels etc. continue to be part of metadata.

Converting Existing Entity YAMLs [IDP 2.0]​

If you have entities defined using legacy Backstage YAML (from IDP 1.0), you can easily convert them to the new Harness-native data model schema. There are two ways to perform this conversion:

  1. Using the Harness IDP UI: Navigate to the Harness IDP UI and open the YAML view while creating an entity. Paste your legacy Backstage Catalog YAML, and the system will automatically generate the corresponding Harness-native Catalog YAML. Learn more in the Catalog YAML View documentation.

  2. Using the YAML Conversion API: To streamline migration, we’ve also introduced an API that converts Backstage Catalog YAML to the Harness-native format. [Read more here.]

All existing Catalog entities will be automatically migrated to IDP 2.0, and their associated YAML files will be deprecated. Additionally, a new Git Experience tool will soon be available, allowing you to commit the converted definitions directly to YAML files in your Git repository.

YAML Conversion Preview

Common to All Kinds: The Envelope [IDP 2.0]​

The root object of your Catalog YAML file follows a standard structure. Below are the core properties that can be included in your Catalog YAML, as defined in IDP 2.0:

apiVersion​

The apiVersion field specifies the version of the specification format that the entity conforms to. It plays a critical role in ensuring compatibility and evolution of the entity schema over time. This field is mandatory for every entity definition, as it allows the parser to correctly interpret the structure and content of the entity.

With IDP 2.0, we've introduced a Harness-native entity schema. As part of this change, all entities now use an apiVersion prefixed with harness.io/.

Use the following default value for your catalog entities:

apiVersion: harness.io/v1

kind​

The kind field defines the high-level type of entity being described in the YAML file. When combined with apiVersion, it helps the parser understand how to interpret the rest of the entity’s structure and behavior. This field is also mandatory for every entity definition.

With IDP 2.0, you can define the following kind types in your Catalog YAML:

  • kind: Component
  • kind: API
  • kind: Resource
  • kind: Workflow

Each kind represents a different type of entity within the Harness-native data model. Read more about the different entity kinds here.

identifier​

The identifier field is a unique, machine-readable reference for the entity. It serves as the primary key for identifying and interacting with the entity.

PropertyDescription
UniquenessMust be unique per kind (case-sensitive).
Required✅ Yes, this field is mandatory for all entities.

This field can be reused after an entity is deleted. It must adhere to the format defined here.

All entity references across the platform use the identifier.

Example usage:

identifier: artist

name​

The name field represents the display name of the entity shown in the UI.

PropertyDescription
UniquenessNot required to be unique.
Required❌ No, this field is optional.

This field supports explanatory or user-friendly strings and may contain special characters.

Example usage:

name: Artist Service

type​

The type field represents the type of entity (e.g., website, service, library, API, etc). The kind and type fields together define entity behavior and should always appear together.

While the catalog accepts any string value here, organizations should maintain a consistent taxonomy. Common examples include:

  1. service - a backend API service
  2. website - a frontend web application
  3. library - a reusable software component (e.g., npm module, Java library)

Example usage:

type: service

projectIdentifier​

In IDP 2.0, legacy System entities are now mapped to Harness Projects. Thus the projectIdentifier field indicates which project the entity belongs to. It is optional for Org or Account-scope entities, but required for those created at the Project scope.

Example usage:

projectIdentifier: public-websites

orgIdentifier​

In IDP 2.0, legacy Domain entities are now mapped to Harness Orgs. Thus the field orgIdentifier indicates which Org the entity belongs to.

Example usage:

orgIdentifier: default

owner​

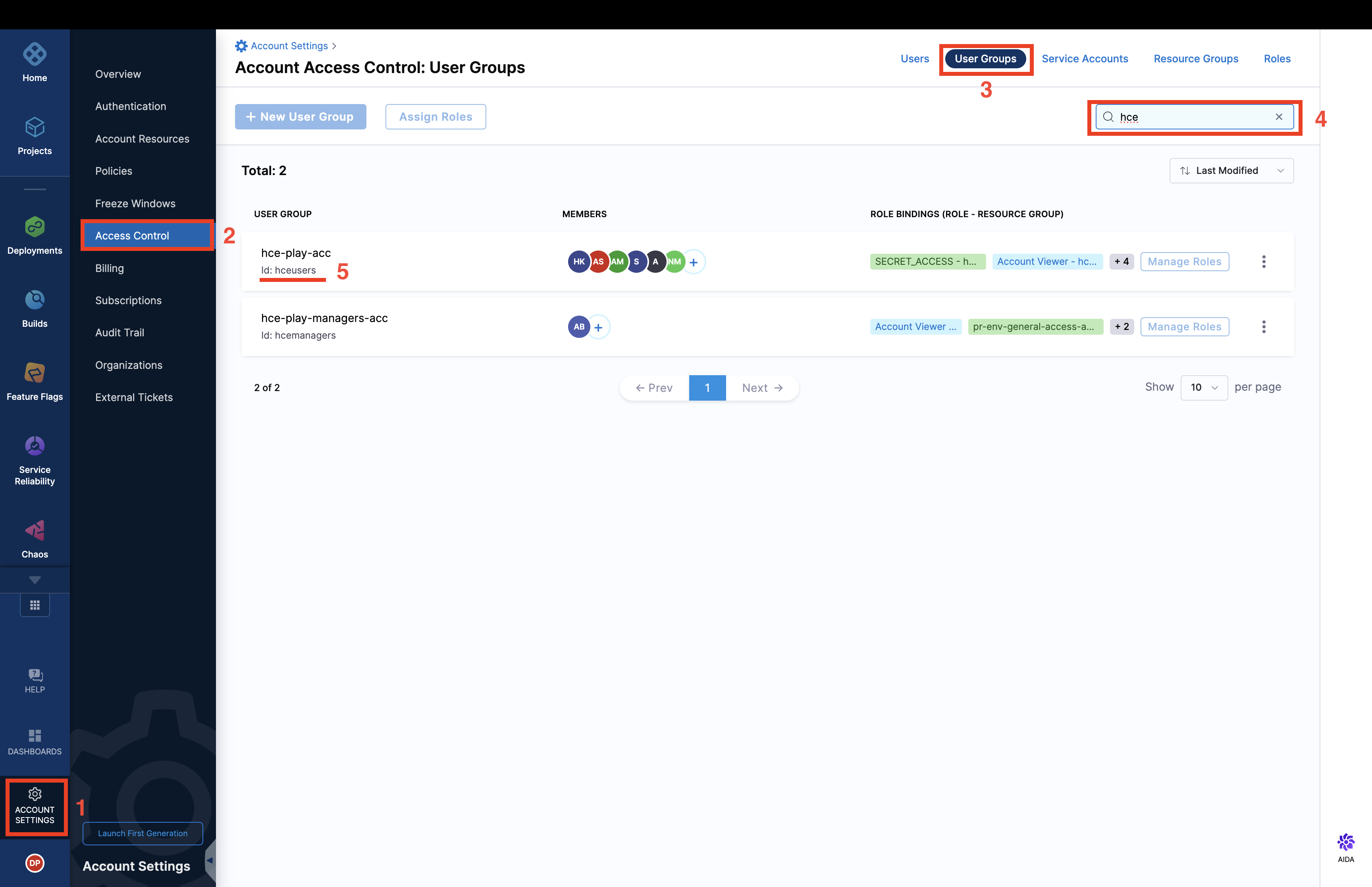

The owner field indicates the owner of that entity and maps to Harness Users or User Groups depending on the scope.

While owner is not mandatory, it is strongly recommended to associate entities with logical owning teams.

  • At Project scope: any User/User Group from Project, Org, or Account can be assigned.
  • At Org scope: assign Users/User Groups from Org or Account.
  • At Account scope: assign from Account-level only.

metadata​

A container for auxiliary data that is not part of the entity’s specification. Additional metadata helps enhance platform-level processing or categorization. See individual entity kind sections for specific structure guidelines.

Please refer to this guide to learn more about metadata.

spec​

Defines the actual specification data that describes the entity. This is the core configuration and varies depending on the kind. See individual entity kind sections for specific structure guidelines.

Entity Kinds [IDP 2.0]​

Kind: Component​

A Component describes a software component. It is typically closely tied to the source code that constitutes the component and is what a developer would typically consider a “unit of software,” usually with a distinct deployable or linkable artifact.

Entity Structure​

All the fields mentioned below are the mandatory parameters required to define a Component:

FieldValue
apiVersionharness.io/v1
kindComponent
typeYou can find out more about the type key here.
spec.lifecycleYou can find out more about the lifecycle key here.

Example YAML​

apiVersion: harness.io/v1
kind: Component
type: website
identifier: artistweb
name: artistweb
owner: artist-relations-team
spec:
  lifecycle: production
metadata:
  description: The place to be, for great artists
  annotations:
    example.com/service-discovery: artistweb
  links:
    - url: https://admin.example-org.com
      title: Admin Dashboard
      icon: dashboard
      type: admin-dashboard
  labels:
    example.com/custom: custom_label_value
  tags:
    - java

Kind: API​

An API describes an interface that can be exposed by a component. APIs can be defined using formats such as OpenAPI, AsyncAPI, GraphQL, gRPC, or others.

Entity Structure​

All the fields mentioned below are the mandatory parameters required to define an API:

FieldValue
apiVersionharness.io/v1
kindAPI
typeYou can find out more about the type key here.
spec.lifecycleYou can find out more about the lifecycle key here.
spec.definitionYou can find out more about the definition key here.

type Definition​

The type of the API definition as a string (e.g., openapi):

  1. openapi – A definition in YAML or JSON based on OpenAPI v2 or v3.
  2. asyncapi – A definition based on the AsyncAPI specification.
  3. graphql – A definition using GraphQL schemas.
  4. grpc – A definition based on Protocol Buffers for use with gRPC.

Example YAML​

apiVersion: harness.io/v1
kind: API
type: openapi
identifier: petstore
name: petstore
owner: Harness_Partners
spec:
  lifecycle: dev
  definition:
    $text: ./petstore.oas.yaml
metadata:
  description: The petstore API
  links:
    - url: https://github.com/swagger-api/swagger-petstore
      title: GitHub Repo
      icon: github
    - url: https://github.com/swagger-api/swagger-petstore/blob/master/src/main/resources/openapi.yaml
      title: API Spec
      icon: code
  tags:
    - store
    - rest

Kind: Resource​

A Resource describes infrastructure components that a system needs to operate—like BigTable databases, Pub/Sub topics, S3 buckets, or CDNs. Modeling them alongside components and systems helps visualize infrastructure footprint and enables tooling around them.

Entity Structure​

All the fields mentioned below are the mandatory parameters required to define a Resource:

FieldValue
apiVersionharness.io/v1
kindResource
typeYou can find out more about the type key here.

type Definition​

The type of the Resource as a string (e.g., database). This field is required. There is no enforced list of values; each organization can define names that suit their tech stack.

Common examples include:

  • database
  • s3-bucket
  • kubernetes-cluster

Example YAML​

apiVersion: harness.io/v1
kind: Resource
type: database
identifier: artistsdb
name: artistsdb
owner: artist-relations-team
spec: {}
metadata:
  description: Stores artist details

Kind: Workflow​

Workflows enable developer self-service by automating manual tasks and processes. Platform engineering teams can use workflows to:

  • Automate new service onboarding
  • Simplify Day 2 operations
  • Provide developers with golden paths to production, including best practices and guardrails

Workflows are stored in the catalog using kind: Workflow.

Entity Structure​

All the fields mentioned below are the mandatory parameters required to define a Workflow:

FieldValue
apiVersionharness.io/v1
kindWorkflow
typeYou can find out more about the type key here.
spec.parametersYou can find out more about the parameters key here.
spec.stepsYou can find out more about the steps key here.

Example YAML​

apiVersion: harness.io/v1
kind: Workflow
type: service
identifier: reactapp
name: Create a new service
owner: d.p@harness.io
spec:
  output:
    links:
      - title: Pipeline Details
        url: ${{ steps.trigger.output.PipelineUrl }}
  parameters:
    - title: Service Details
      required:
        - project_name
        - template_type
        - public_template_url
        - repository_type
        - repository_description
        - repository_default_branch
        - direct_push_branch
        - slack_id
      properties:
        token:
          title: Harness Token
          type: string
          ui:widget: password
          ui:field: HarnessAuthToken
        projectId:
          title: Project Identifier
          description: Harness Project Identifier
          type: string
          ui:field: HarnessProjectPicker
        template_type:
          title: Type of the Template
          type: string
          description: Type of the template
        public_template_url:
          title: Public Template URL
          type: string
          description: URL of the public Cookiecutter template
        repository_type:
          type: string
          title: Repository Type
          enum:
            - public
            - private
          default: Public
        repository_description:
          type: string
          title: Repository Description
          description: Auto-generated using the self-service flow of Harness IDP
        owner:
          title: Service Owner
          type: string
          ui:field: OwnerPicker
          ui:options:
            allowedKinds:
              - Group
  steps:
    - id: trigger
      name: Creating your React app
      action: trigger:harness-custom-pipeline
      input:
        url: https://app.harness.io/ng/account/account_id/module/idp/orgs/org_id/projects/project_id/pipelines/pipeline_id/pipeline-studio/?storeType=INLINE
        inputset:
          project_name: ${{ parameters.project_name }}
          template_type: ${{ parameters.template_type }}
          public_template_url: ${{ parameters.public_template_url }}
        apikey: ${{ parameters.token }}
metadata:
  description: A workflow to create a new service
  tags:
    - nextjs
    - react
    - javascript

[Deprecated] Kind: Location​

The Location entity served as a reference to a YAML path that produced other entities.
However, with Harness IDP 2.0 managing all entities internally, this entity type is no longer required and has been deprecated.
